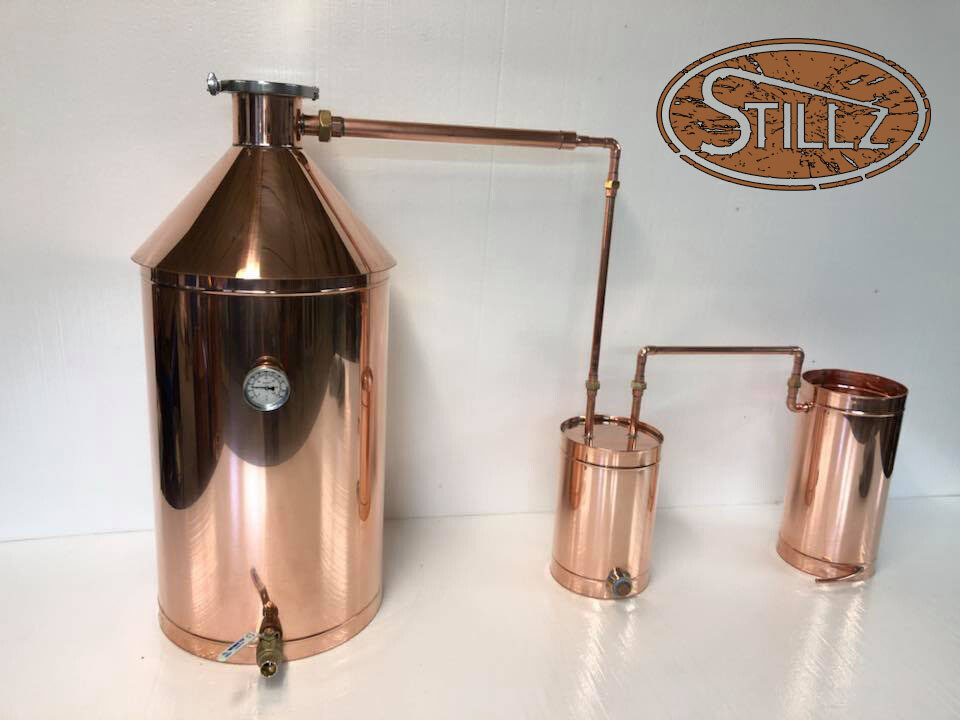

Stillz 20-Gallon Copper Distillation System – Cap Logic Design
The StillZ 20 Gallon Cap-Logic Still is built for distillers who want bigger batches and professional-grade performance. Featuring our trusted Cap-Logic sealing system, this still offers secure operation without external clamps — ideal for serious home distillers and small craft setups.
Made from handcrafted, high-quality copper, it ensures exceptional heat transfer and clean, premium spirit output.
Features
- 20-gallon capacity for larger, more efficient production
- Cap-Logic lid delivers fast, reliable sealing
- Heavy-gauge copper pot for superior heating
- Ideal for whiskey, moonshine, rum & craft spirits
- Hand-built for durability and consistency
The 20 Gallon Cap-Logic Still is the perfect upgrade for anyone ready to step up to larger batch distillation with professional reliability.Experience professional-level performance with the Stillz 20-Gallon Cap Logic Distillation System, engineered for makers who want consistent, high-quality results. Distills Alcohol as well as distilled water. Built from premium copper and equipped with precision temperature control, this system delivers excellent heat distribution, smooth operation, and long-lasting durability.
Whether you’re scaling up your workflow or upgrading from a smaller still, the 20-gallon model offers the ideal balance of capacity, efficiency, and craftsmanship.
CAPACITY & SPECS
Step up your production with the 20 Gallon Cap Logic® Copper Moonshine Still, engineered for larger batches, superior vapor control, and exceptional copper purity. Built from thick-gauge Paul Revere Copper, this still is handcrafted, polished, pressure-tested, and ready for serious distillers who demand maximum output and flawless results.
This 20 gallon copper still is ideal for whiskey, bourbon, rum, brandy, small craft distilleries, and experienced home distillers.
Features
- Large-capacity 20 gallon Cap Logic® copper still
- Built from premium Paul Revere Copper
- Ideal for high-output distillation
- Hand-polished to a mirror finish
- Cap Logic venting + vapor-control system
- Perfect for whiskey, rum, bourbon, brandy & moonshine
- Designed for professional & commercial-grade distilling
Benefits
- Handles larger runs with ease
- Exceptional copper contact for cleaner spirits
- Stable temperature control
- Heavy-duty build for long-term commercial use
- Produces consistent high-quality spirits
✅ Specifications
- Capacity: 20 Gallons
- Material: Paul Revere Copper
- Type: Copper Pot Still / Cap Logic
- Use: High-Capacity Whiskey, Bourbon, Rum, Spirits
- Build: Handcrafted / Made in USA
20-Gallon Copper Pot
- Heavy-duty 20-gallon copper pot with Pasco temperature gauge for accurate heat monitoring
- Height: 38″
- Diameter: 15″
- Line Arm Length: 19″
- Total Setup Length: 45″
- Designed for even heat distribution and efficient distillation performance
3-Gallon Thumper
- Durable 3-gallon copper thumper enhances vapor refinement for cleaner, more consistent output
- Includes a 1 1/2″ brass flush-out for easy draining and maintenance
- Built with a 12″ long, 1/2″ copper cross pipe and union fittings for secure and accessible connections
3-Gallon Condensing Worm
- Equipped with 9 ft of copper condensing coil for superior cooling and smooth condensation
- 3/4″ inlet/outlet hose connections ensure reliable water flow
- Efficient cooling design for stable, consistent operation
StillZ Electrical Heating System (Electric Units Only)
- (1) 220V PID controller with precision temperature probes for automated, accurate heat control
- (1) 5500W electrical heating element provides fast heat-up and steady performance
- Ideal for users seeking a clean, controlled, and highly efficient electric heating solution
Need a Larger Thumper or Condensing Worm?
Upgrades Available – Call: 978-457-5366
