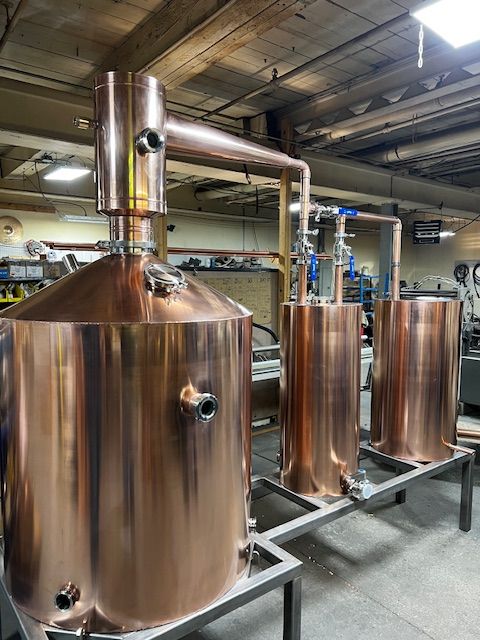

250 Gallon Commercial Copper Distillation System – Premium Heavy-Duty Professional Still

Our 250 Gallon Commercial Copper Still is engineered for high-capacity, professional-grade operation and built from .064 (16-gauge) 99.9% pure half-hardened copper for maximum durability, heat transfer, and longevity. Designed for commercial distilleries, botanical processors, and large-scale production facilities, this system provides unmatched performance, efficiency, and reliability.

⭐ Key Features & Specifications

Premium Copper Construction

• Fabricated from .064 (16-gauge) 99.9% pure, half-hardened copper
• All seams TIG welded
• All fittings attached using pure copper rod for maximum purity and strength

Main Pot & Drainage System

• Funneled bottom for complete drainage
• Stainless steel butterfly valve for fast, clean discharge
• 6″ stainless access port on front for interior cleaning
• 2.5″ sight glass for easy monitoring
• 2″ vacuum breaker / pressure relief valve ports on cone
• 6″ tri-clamp ferrule with silicone gasket for attaching heads
• Large Whiskey Head for optimal vapor flow

Vapor Path & Condensing System

• 1.5″ copper piping to the thumper
• 50 Gallon Stainless Thumper with:
  • Stainless valved bypass system
  • Optional heating element for independent thumper control
• 100 Gallon enclosed cooling condenser (worm) with 3/4″ copper coil
• Designed for efficient condensation and consistent cooling performance

Industrial Heating System

• Four (4) 5500W distillery-grade heating elements
• Total of 22,000 watts of electric heating power
• PID Control Panel for precise temperature and heat management
• Optional additional heating element for the thumper

Heavy-Duty Support Frame

• Built on a 2″ heavy-walled square tube stainless steel stand
• Engineered for long-term stability and structural integrity

Customizable Options

We can build this system to match your preferred heating method:

• Electric
• Natural Gas

We also offer custom dimension adjustments to fit your space and workflow.

Pricing

Cost as described: $48,500.00
Crating and freight not included — please call for an exact shipping quote.

Need Additional Equipment?

We can supply:

• Pumps
• Fermenters
• Mash tuns
• Additional thumpers or condensers
• Custom piping setups
• Complete distillery layouts

Just let us know your needs and we’ll configure a system to fit your operation.

Important Notice

All equipment must be used in compliance with local, state, and federal regulations.
Buyer is responsible for all applicable permits and legal requirements.
